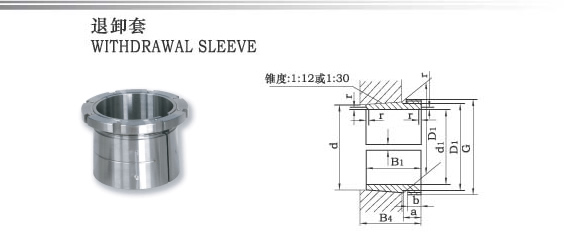

| 型号 | 尺寸(mm) | 适用的轴承号 | 重量(kg) | ||||
| d | d1 | B3 | G | 调心球子轴承 | |||
| AH24122 | 110 | 105 | 82 | M115×2 | 24112K | ||
| AH24124 | 120 | 115 | 93 | M130×2 | 24124K | ||
| AH24126 | 130 | 125 | 94 | M140×2 | 24126K | ||
| AH24128 | 140 | 135 | 99 | M150×2 | 24128K | ||
| AH24130 | 150 | 145 | 115 | M160×3 | 24130K | ||
| AH24132 | 160 | 150 | 124 | M170×3 | 24132K | ||
| AH24134 | 170 | 160 | 125 | M180×3 | 24134K | ||
| AH24136 | 180 | 170 | 134 | M190×3 | 24136K | ||
| AH24138 | 190 | 180 | 146 | M200×3 | 24138K | ||
| AH24140 | 200 | 190 | 158 | Tr210×4 | 24140K | ||
| AH24144 | 220 | 200 | 170 | Tr230×4 | 24144K | ||
| AH24148 | 240 | 220 | 180 | Tr260×4 | 24148K | ||
| AH24152 | 260 | 240 | 202 | Tr280×4 | 24152K | ||
| AH24156 | 280 | 260 | 202 | Tr300×4 | 24156K | ||
| AH24160 | 300 | 280 | 224 | Tr320×5 | 24160K | ||
| AH24164 | 320 | 300 | 242 | Tr340×5 | 24164K | ||
| AH24168 | 340 | 320 | 269 | Tr360×5 | 24168K | ||
| AH24172 | 360 | 340 | 269 | Tr380×5 | 24172K | ||
| AH24176 | 380 | 360 | 271 | Tr400×5 | 24176K | ||
| AH24180 | 400 | 380 | 278 | Tr420×5 | 24180K | ||
| AH24184 | 420 | 400 | 310 | Tr440×5 | 24184K | ||
| AH24188 | 440 | 420 | 310 | Tr460×5 | 24188K | ||
| AH24192 | 460 | 440 | 332 | Tr480×5 | 24192K | ||
| AH24196 | 480 | 460 | 340 | Tr500×5 | 24196K | ||
| AH214/500 | 500 | 480 | 360 | Tr530×6 | 241/500K30 | ||
| AH214/530 | 530 | 500 | 370 | Tr560×6 | 241/530K30 | ||
| AH214/560 | 560 | 530 | 393 | Tr600×6 | 241/560K30 | ||
| AH214/600 | 600 | 570 | 413 | Tr630×6 | 241/600K30 | ||
| AH214/630 | 630 | 600 | 440 | Tr670×6 | 241/630K30 | ||
| AH214/670 | 670 | 630 | 452 | Tr710×7 | 241/670K30 | ||
| AH214/710 | 710 | 670 | 483 | Tr750×7 | 241/710K30 | ||
| AH214/750 | 750 | 710 | 520 | Tr800×7 | 241/750K30 | ||
| AH214/800 | 800 | 750 | 525 | Tr850×7 | 241/800K30 | ||
| AH214/850 | 850 | 800 | 560 | Tr900×7 | 241/850K30 | ||
| AH214/900 | 900 | 850 | 575 | Tr950×8 | 241/900K30 | ||
| AH214/950 | 950 | 900 | 605 | Tr1000×8 | 241/950K30 | ||
| AH214/1000 | 1000 | 950 | 645 | Tr1060×8 | 241/1000K30 | ||
| AH214/1060 | 1060 | 1000 | 665 | Tr1120×8 | 241/1060K30 | ||
